The Google Glass Era (2012–2015): A Prototype for the Future

Between 2012 and 2015, wearable technology entered a high-profile experimental phase known as the Google Glass era. Whilst the project originated in Google X labs in 2011, it became a public phenomenon in 2012 following a high-altitude demonstration at the Google I/O keynote. Although it failed to achieve mass-market adoption, this period established the technical and social frameworks for the augmented reality (AR) and spatial computing industries. It marked a transition from wearables as bulky industrial equipment to streamlined, lifestyle-oriented “heads-up displays” (HUDs).

From Industrial Tool to Lifestyle Device

Historically, head-mounted displays (HMDs) were restricted to military flight decks, specialised medical imaging, or heavy industrial maintenance. These systems were heavy, tethered to external computers, and strictly utilitarian.

Google Glass attempted to miniaturise this technology for the general public. The objective was ambient computing: a device that functioned as a “second screen” for the human eye.

• Notification Integration: Delivering texts, emails, and alerts without the friction of pulling out a mobile phone.
• Point-of-View (POV) Capture: Using a front-facing camera to document events hands-free.
• Minimalist Engineering: Shifting the hardware from a “helmet” to a titanium frame that weighed less than a standard pair of spectacles.

The vision was pragmatic: a user could glance up to see a calendar invite or a navigation prompt whilst walking or drinking coffee, effectively merging digital data with the physical environment.

The Ingenuity of Miniature Projection: US Patent 9,285,592

The core of Google Glass’s hardware was its display engine, detailed in US Patent 9,285,592. This patent describes an optical system designed to project digital content into the user’s line of sight without obstructing their view.

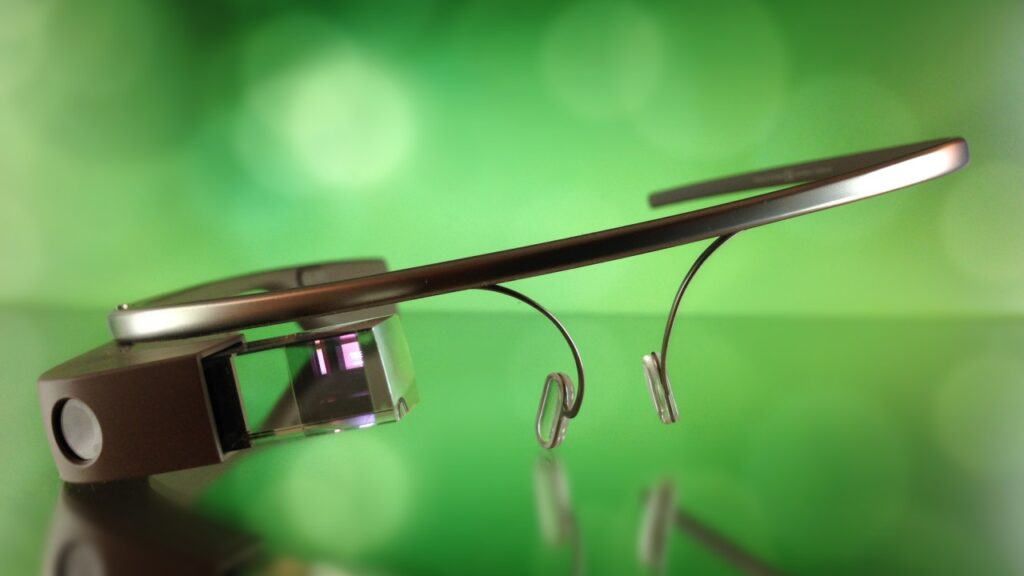

The hardware utilised a Liquid Crystal on Silicon (LCoS) micro-display housed in the arm of the glasses. This projector sent an image into a semi-transparent prism located in front of the right eye. The prism acted as a beam-splitter, reflecting the digital image into the eye whilst allowing light from the real world to pass through.

Technical Choice: Monocular Overlay Google Glass utilised a monocular (single-eye) design. Unlike Virtual Reality (VR), which blocks out the world to create an immersive environment, Glass provided a transparent overlay. The image appeared in the upper-right periphery, intended for “glanceable” information rather than constant focus, ensuring the user remained grounded in their actual surroundings.

The Dawn of Gaze Control: US Patent 9,897,808

Whilst Google Glass used a physical touchpad and voice commands (“OK Glass”), the era saw a surge in research for more discreet interfaces. US Patent 9,897,808, filed by LG during this timeframe, exemplifies the industry’s shift towards Gaze Control.

This technology involved placing internal infrared sensors and cameras inside the frame to monitor the user’s pupil movements. The goal was to solve the “input problem” of wearables:

• Eye-Tracking Navigation: Allowing users to scroll through lists or click buttons simply by looking at them.
• Power Management: Using gaze detection to put the display to sleep when the user wasn’t looking at the prism, a critical feature for devices with small batteries.
• Natural Interaction: Eliminating the need for the “arm-up” gesture required to use a side touchpad, which was often viewed as socially awkward.

Whilst these gaze-based patents were being filed, Google Glass relied on its side-mounted capacitive touchpad and bone-conduction transducer for audio, showcasing the diverse technical approaches of the era.

Barriers to Success: Social and Technical Friction

Despite the engineering feats, Google Glass encountered three primary obstacles that led to its consumer withdrawal in 2015:

1. Privacy backlash: The front-facing camera triggered public concern. The device attracted a derogatory nickname in the press and was banned in some venues, reflecting anxiety about bystander privacy and covert recording.
2. Economic Constraints: The £1,000/$1,500 Explorer Edition price tag relegated the device to developers and tech enthusiasts. For the average consumer, the ability to see notifications in their eye did not provide enough value to justify the cost.
3. Hardware Limitations: Miniaturisation came at a cost. The device suffered from short battery life (often less than three hours of heavy use) and thermal throttling, where the frame would become uncomfortably warm during video recording.

The Legacy of the Google Glass Era

The 2012–2015 period was a critical learning phase that redirected the entire AR industry. Its impact is seen in three areas:

• Enterprise Rebirth: In 2017, the device was repositioned as the Google Glass Enterprise Edition. It became a success in factories (such as Boeing and GE) and hospitals, where hands-free access to checklists and manuals provided measurable productivity gains.
• UI/UX Foundations: Glass established the “Cards” UI, small, digestible snippets of information, that influenced the design of smartwatches and modern AR interfaces.
• Influence on Modern AR: The lessons learned regarding weight, heat, and social privacy shaped the constraints later smart-glass projects had to address, including Microsoft HoloLens, Snap Spectacles, and Meta’s recent smart-glass work.

Role of Smart Glasses in Healthcare

In healthcare, smart glasses have been trialled in controlled settings as hands-free tools for training, remote support, and simple, glanceable information. Most published work focuses on feasibility and usability rather than large trials demonstrating consistent improvements in patient outcomes, so the strongest claims are about where the technology can help and where it still struggles.

Data visualisation: In some workflows, a heads-up display can support quick reference to imaging or key patient data without repeatedly turning to a wall monitor.

Hands-free documentation: Voice-driven access to checklists and records can reduce touchpoints in environments where cleanliness and speed matter, although reliability and integration remain common constraints.

Medical training and remote support: Point-of-view capture and live streaming are among the most frequently reported uses, enabling supervised teaching and real-time consultation when consent and governance are explicit.

The era normalised prism-based, glanceable overlays and accelerated research into subtler, more natural inputs such as eye tracking, whilst making privacy, comfort, heat, and battery life non-negotiable design constraints. What followed wasn’t the death of smart glasses, but their maturation: away from novelty and towards specific contexts where hands-free value is undeniable, from the factory floor to the clinic.
